Technology: Swift, Xcode, Java Springboot, MySQL, Google Cloud Platform

This app allows someone to track their weight lifting statistics during a workout and
then saves them to the cloud. The user can then look at a history of their workouts
and view the details of each one.

My previous work with iOS and the Google Cloud Platform (GCP) made me take an interest in
connecting a mobile app to a GCP API. I first started the server instance on GCP's App Engine
then deployed software to it with Java Springboot. I then connected the App Engine to
a GCP SQL instance to store user data. Next, I made an entity relation diagram and configured
the SQL instance with the SQL file I made from the diagram using MySQL. Lastly, I made
all the frontend components in Xcode that communicated with the server using HTTP requests.

Demo:

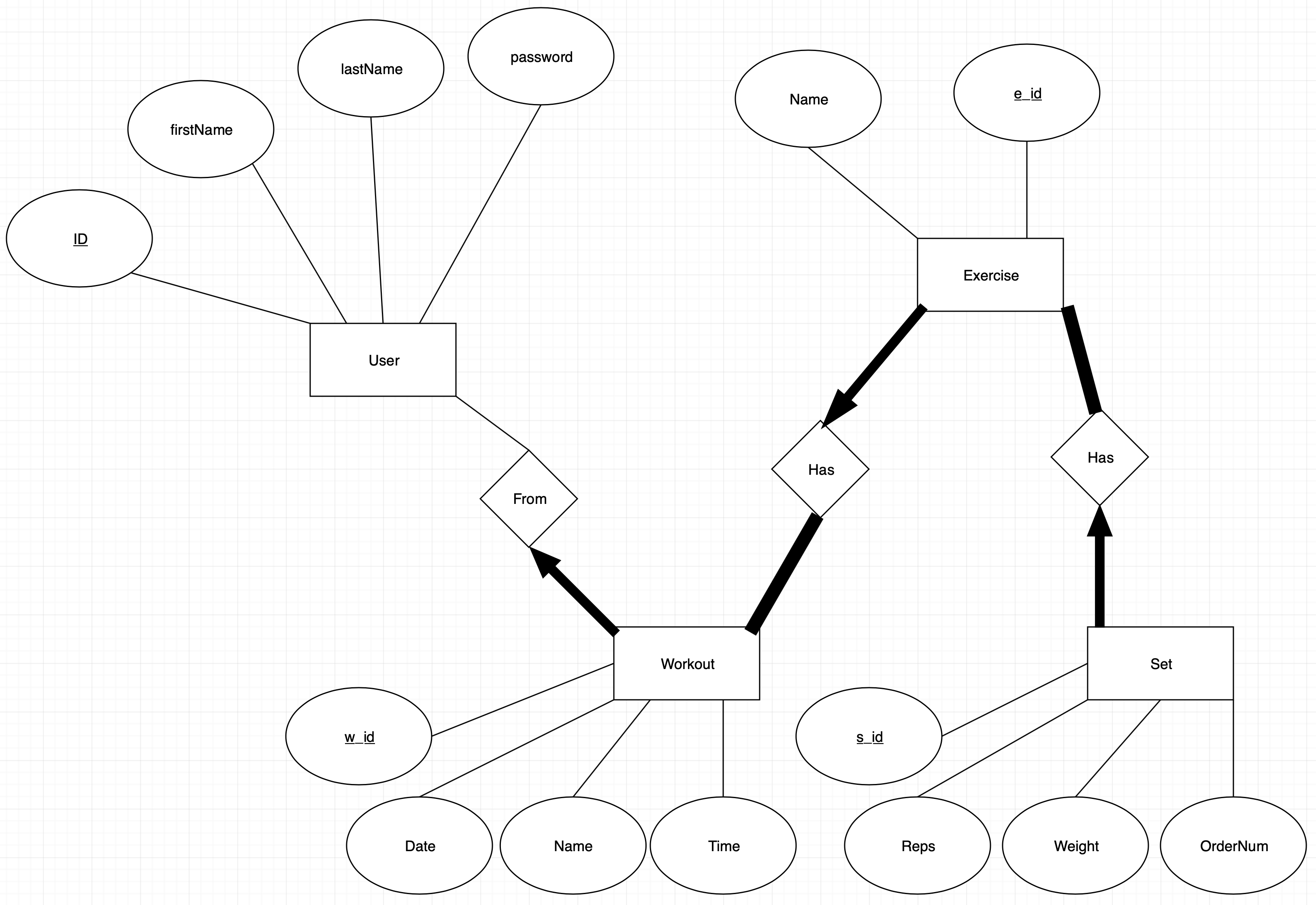

Entity relation diagram showing database design:

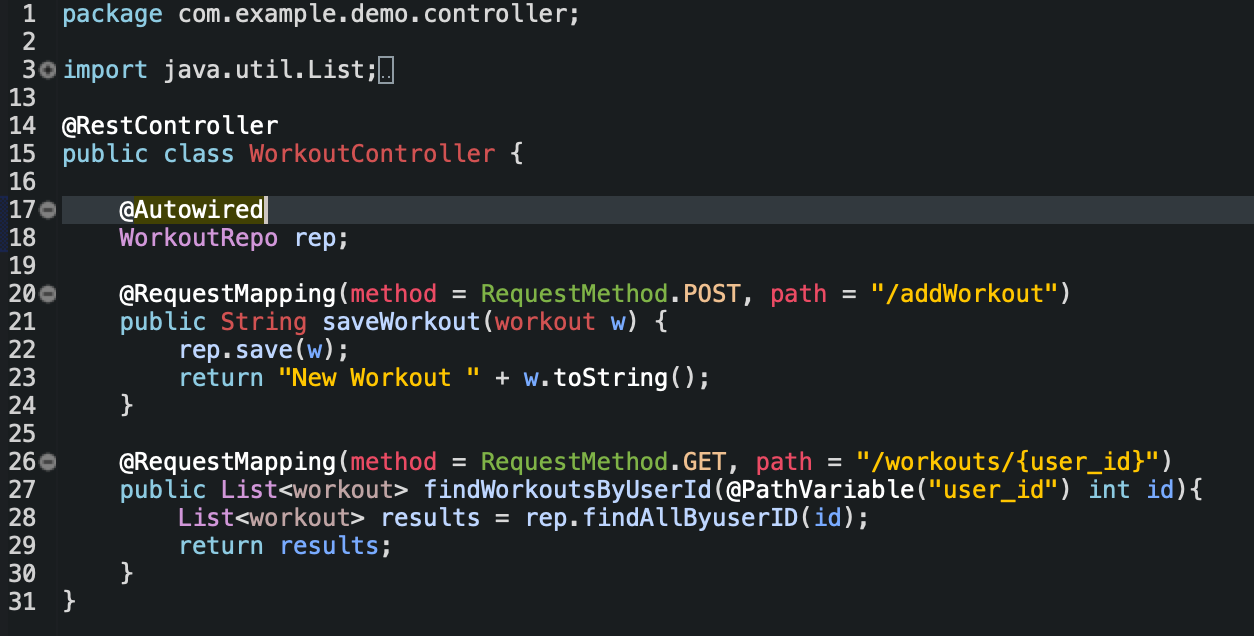

WorkoutController.java:

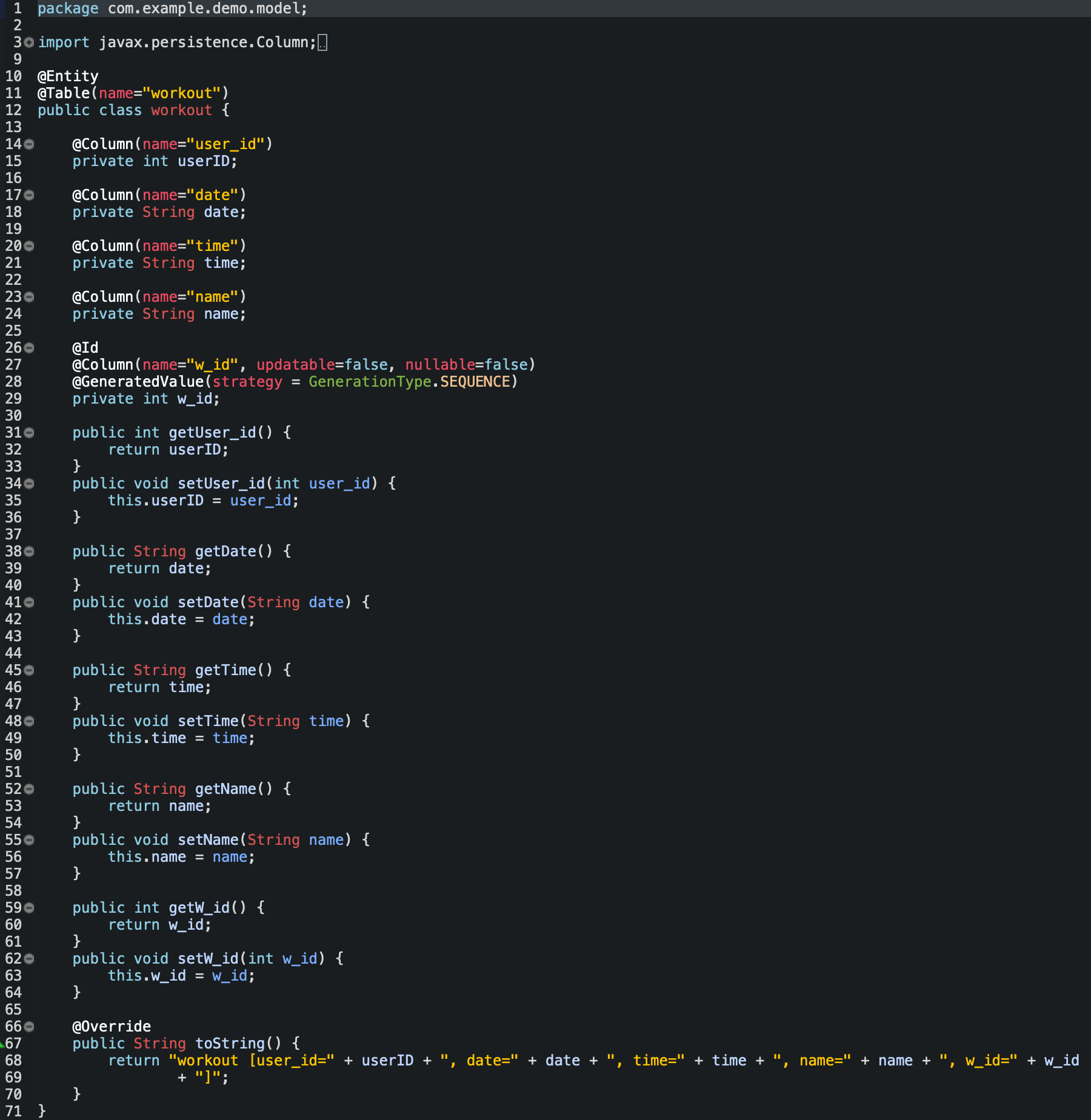

Workout.java (the entity model of a workout):

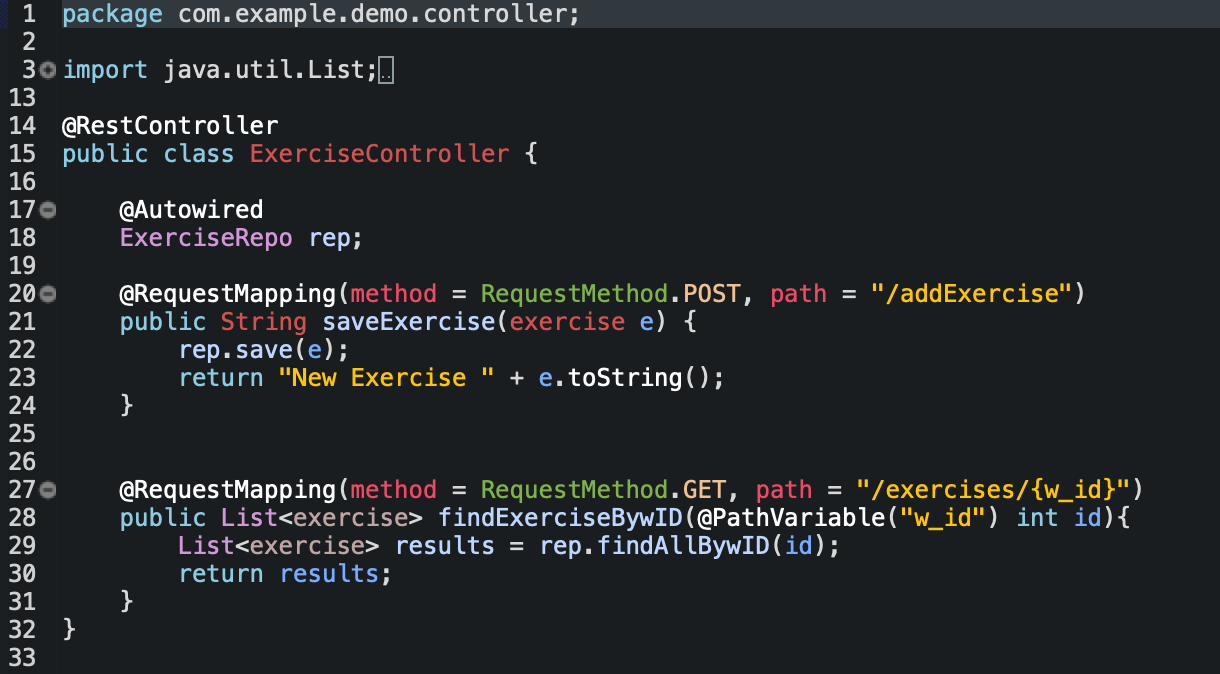

ExerciseController.java:

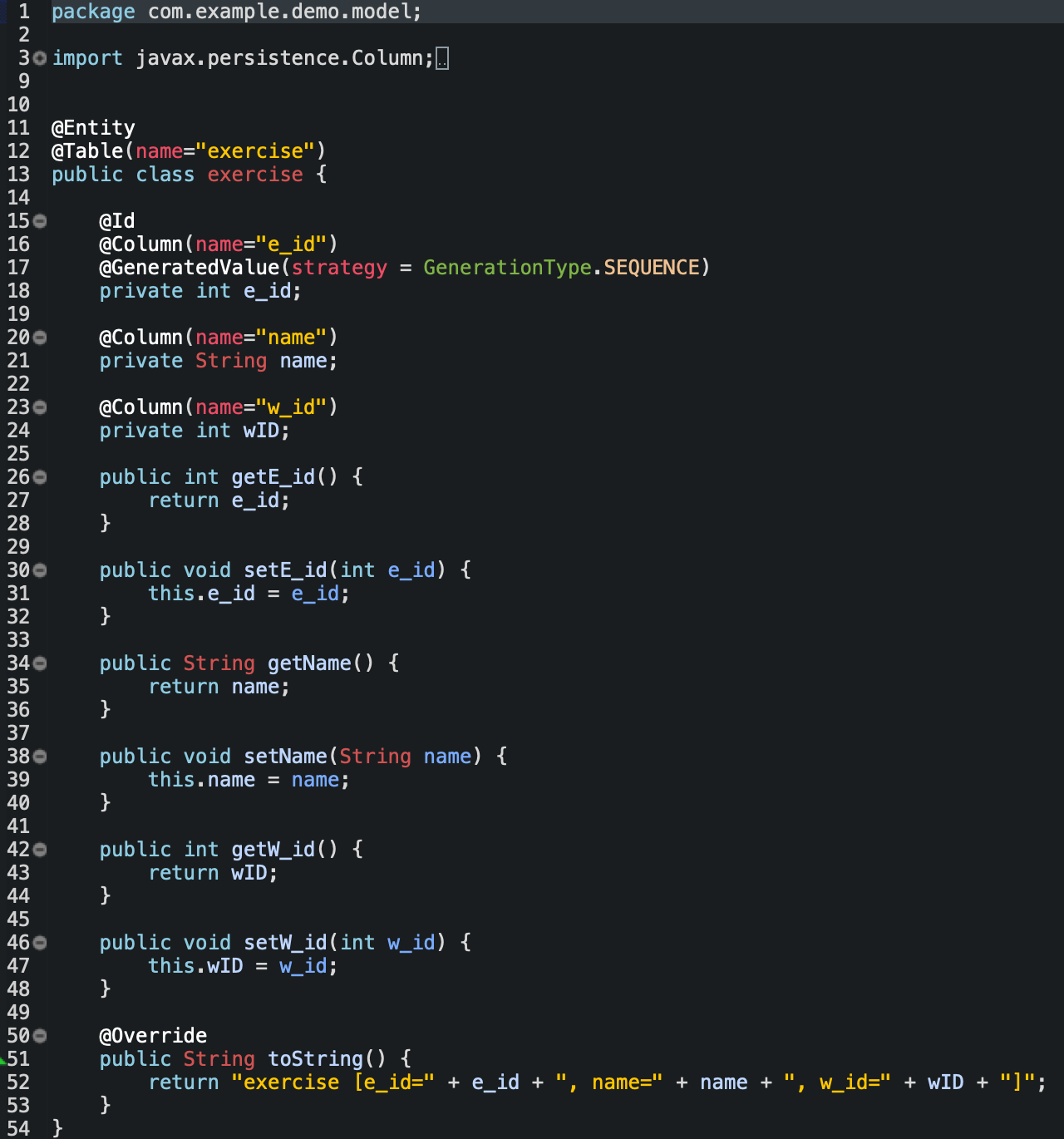

exercise.java (the entity model of an exercise):

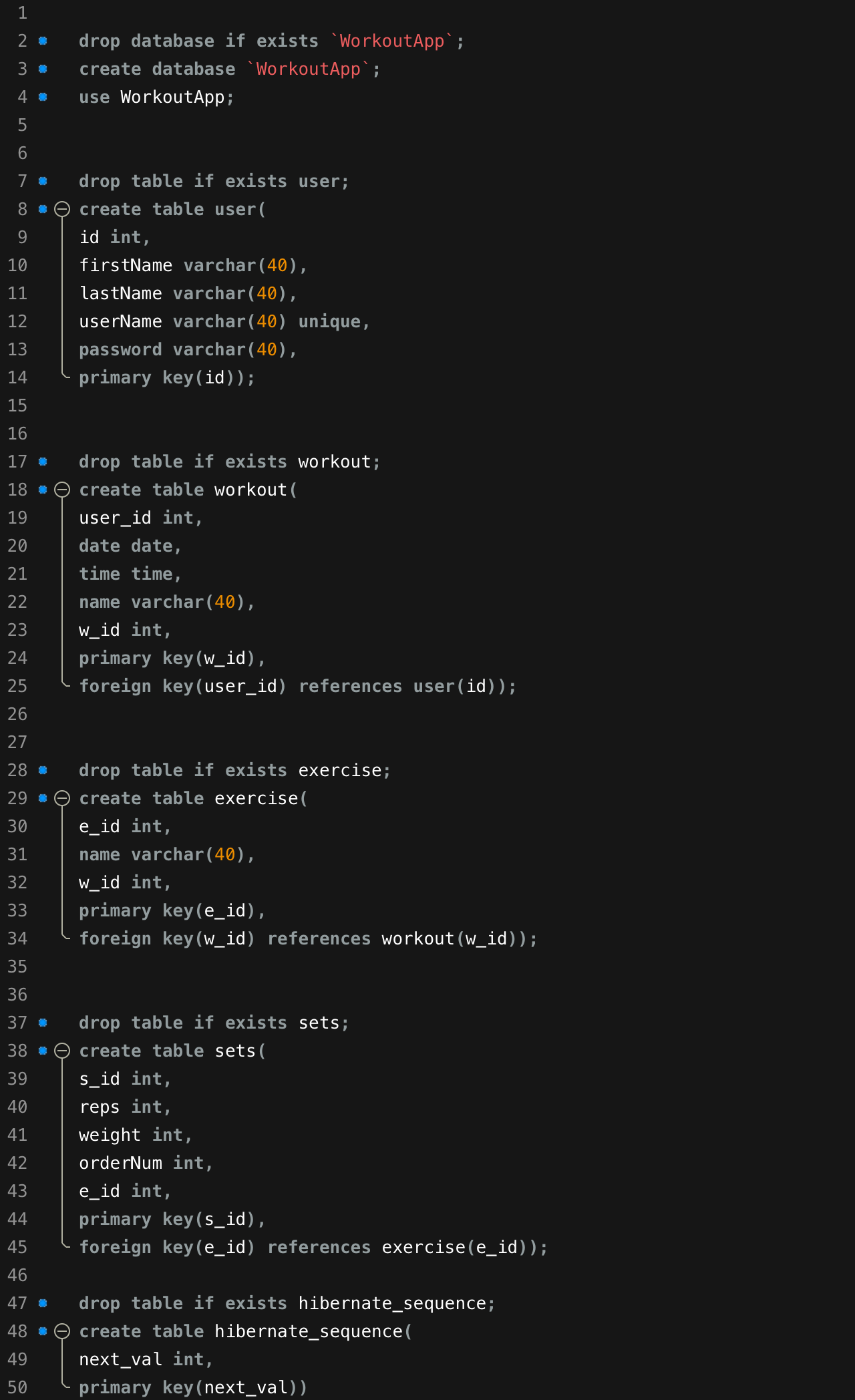

WorkoutTracker.sql:

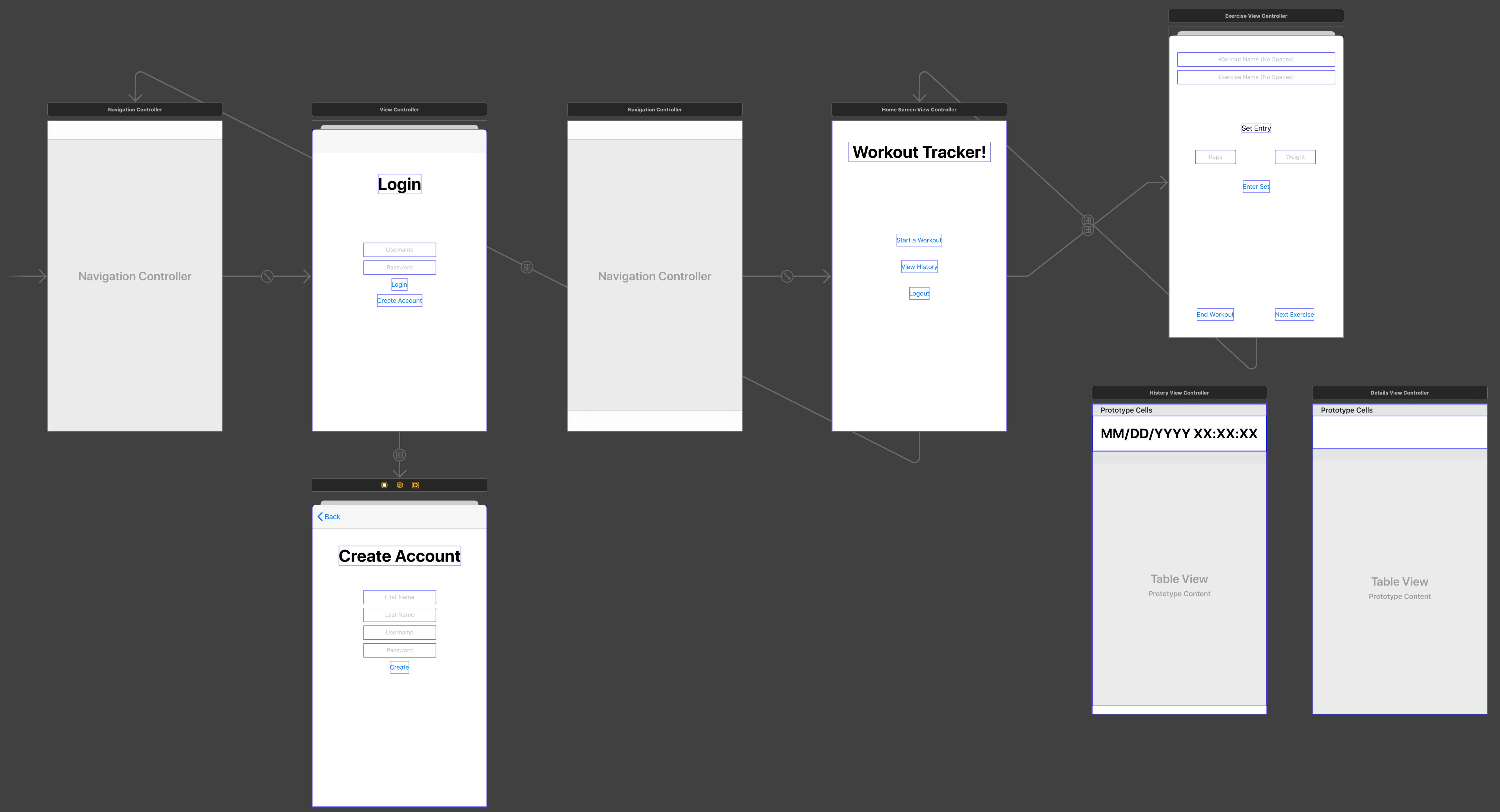

Main.storyboard (manages navigation and UI components):

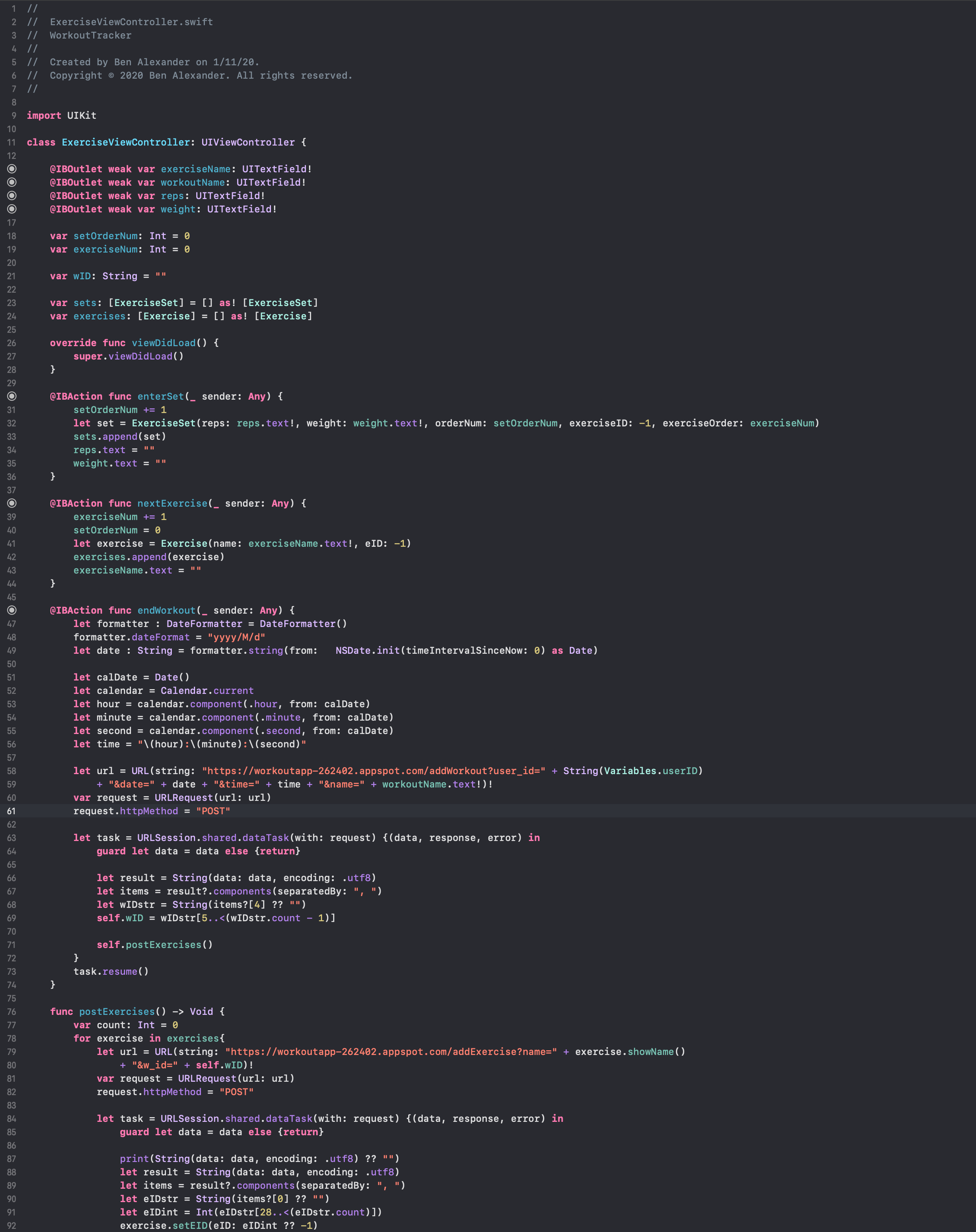

ExerciseViewController.swift:

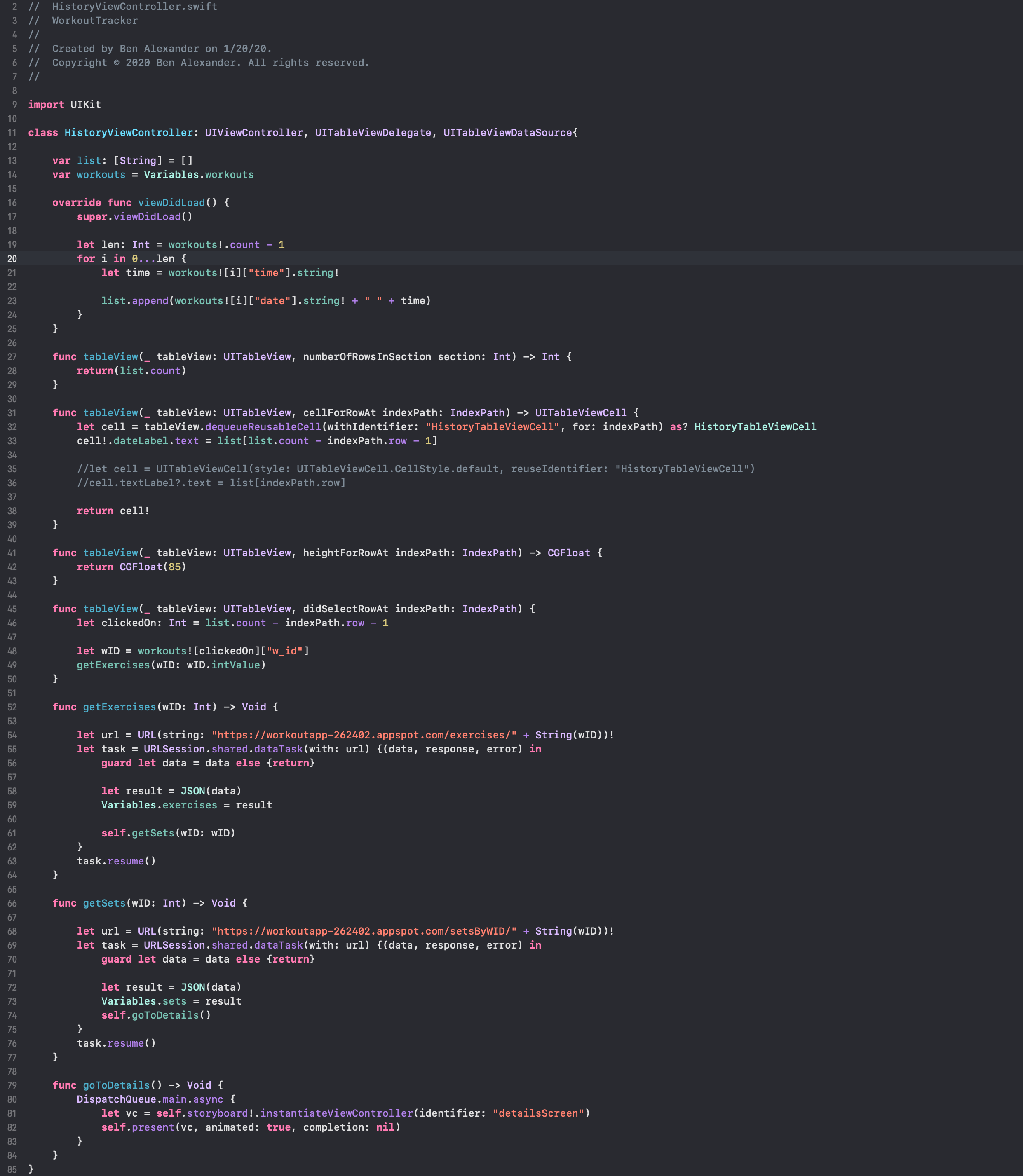

HistoryViewController.swift:

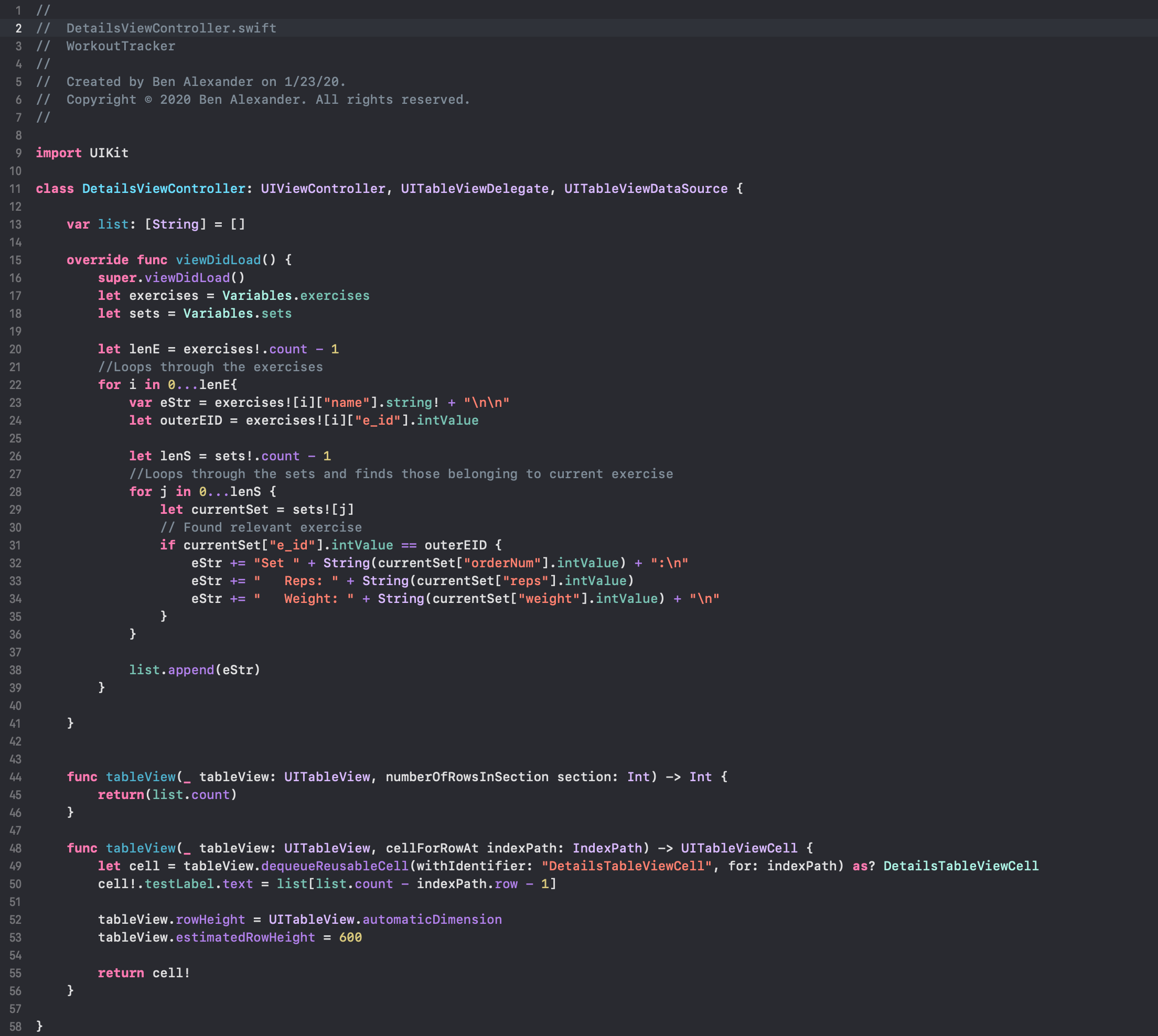

DetailsViewController.swift:
